Wine Guardian DS025: Expert Guide to Premium Wine Storage

Climate control represents the foundation of any luxury wine cellar, and choosing the right system determines whether your collection thrives or deteriorates. The wine guardian ds025 has emerged as a sophisticated solution for discerning collectors, restaurateurs, and designers who refuse to compromise on performance or aesthetics. This ducted split system delivers the precision climate management your investment-grade wines demand while offering installation flexibility that traditional through-wall units simply cannot match. Understanding what makes this particular cooling unit exceptional helps you make informed decisions about protecting collections valued at tens or hundreds of thousands of dollars.

Understanding the Wine Guardian DS025 Architecture

The wine guardian ds025 belongs to Wine Guardian's Sentinel Series, representing their ducted split cooling systems designed specifically for wine cellar applications. Unlike self-contained units, split systems separate the evaporator and condenser components, offering unprecedented installation flexibility.

Key Specifications and Capacity

Technical Performance:

• Cooling capacity: 2,500 BTU/hour (quarter-ton system)

• Temperature control range: 55°F to 65°F with ±1°F precision

• Humidity management: Active control with optional integrated humidifier

• Power requirements: 115V/60Hz single-phase

• Refrigerant type: R410A

The wine guardian ds025 excels in cellars ranging from 200 to 400 cubic feet, making it ideal for residential reach-in cellars, boutique hotel wine displays, and intimate restaurant wine rooms. Its quarter-ton capacity provides sufficient cooling power without the energy waste of oversized systems.

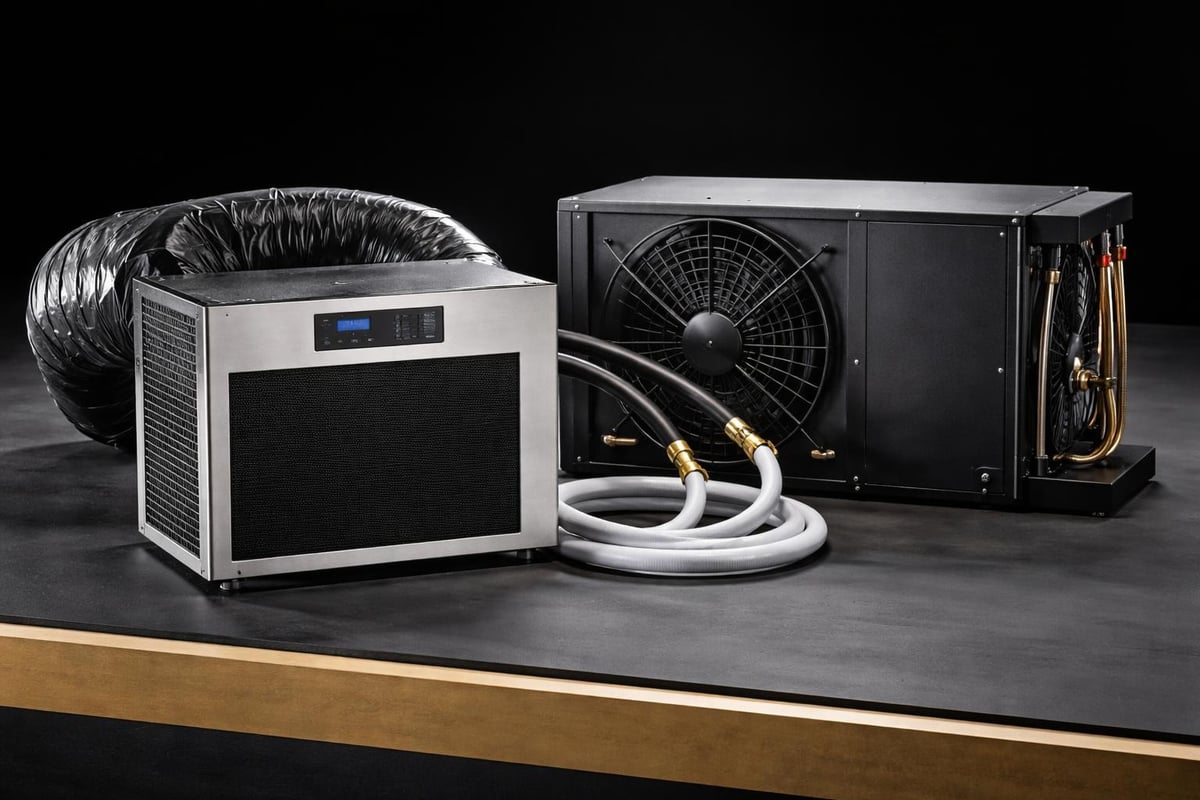

Why Split System Design Matters

Traditional through-wall cooling units create aesthetic and spatial challenges. The evaporator must mount directly on your cellar wall, often disrupting carefully planned design elements. The wine guardian ds025 resolves this elegantly.

Split System Advantages:

• Evaporator placement: Install discreetly in ceiling spaces, mechanical rooms, or concealed wall cavities

• Condenser location: Position outdoors, in garages, attics, or separate mechanical spaces

• Reduced noise: Compressor operates away from living spaces and wine display areas

• Design freedom: No visible equipment disrupts your custom wine cellar design vision

• Ductwork flexibility: Route supply and return air exactly where needed

This architectural flexibility proves invaluable in modern wine cellars and glass-enclosed showpiece designs where visible equipment would compromise the aesthetic statement.

Installation Considerations and Best Practices

Proper installation determines whether the wine guardian ds025 performs to its full potential. Several critical factors influence system efficiency and longevity.

Sizing and Load Calculations

Never guess at cooling requirements. Even a perfectly engineered wine guardian ds025 will underperform if incorrectly sized for your application. Our heat load calculator helps determine precise cooling needs based on:

1. Cellar volume: Cubic footage including ceiling height variations

2. Insulation values: Wall, ceiling, and floor R-values

3. Glass exposure: Square footage of glass walls or doors

4. Lighting heat: LED vs. incandescent heat generation

5. Door traffic: Frequency of cellar access

6. Ambient conditions: Temperature differential between cellar and surrounding spaces

The detailed specifications confirm the wine guardian ds025 handles typical residential applications beautifully, but oversizing or undersizing by even half a ton creates temperature swings that damage wine.

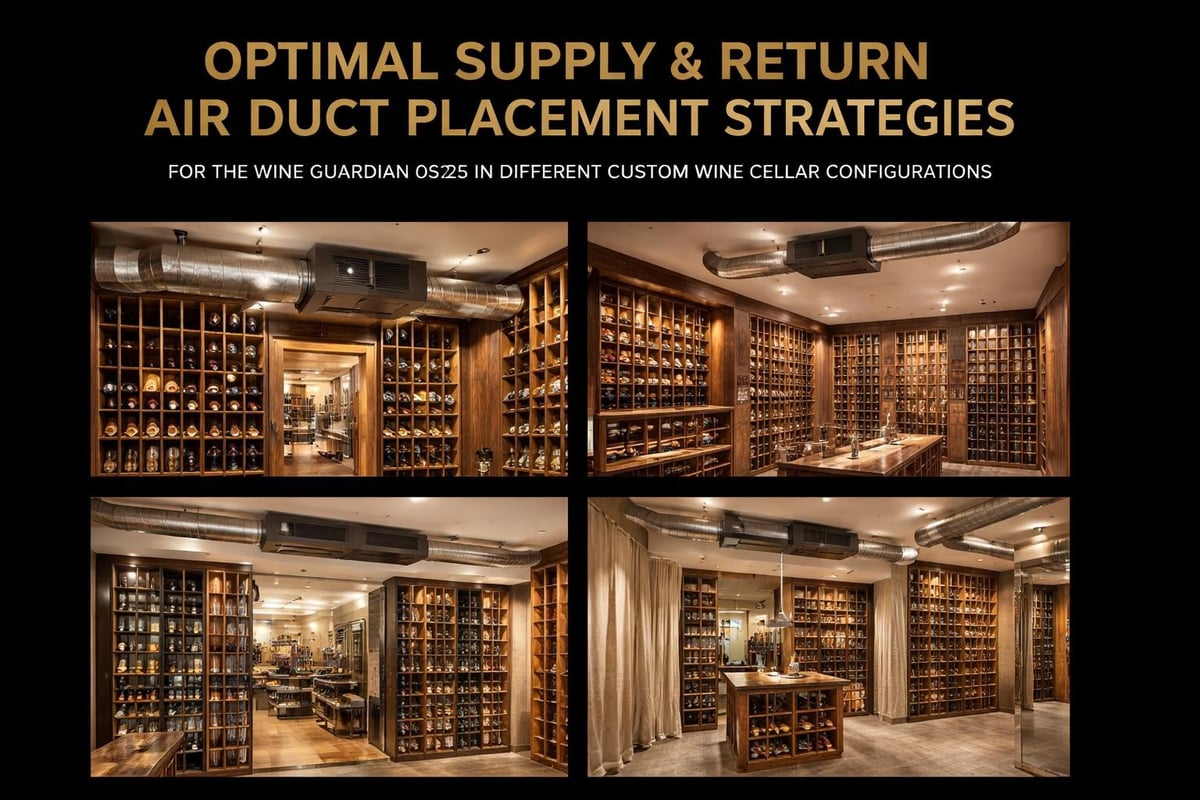

Ductwork Design Principles

Proper ductwork transforms adequate cooling into exceptional climate control. The wine guardian ds025 requires thoughtful air distribution planning.

Critical Ductwork Elements:

The system's ducted design enables creative solutions. In one Austin luxury wine cellar project, we installed the evaporator in an adjacent mechanical closet and ran discrete ceiling ducts through a dropped soffit, maintaining clean sightlines throughout the 350-cubic-foot space.

Humidity Control Integration

Wine corks dry out below 50% relative humidity, allowing oxygen infiltration that ruins wine. The wine guardian ds025 addresses this challenge through active humidity management. The integrated humidifier maintains 50-70% RH automatically.

Humidification Benefits:

• Prevents cork shrinkage and oxidation

• Maintains label integrity (important for collectible bottles)

• Reduces evaporation through cork material

• Creates optimal aging environment matching traditional European caves

This integrated approach eliminates the hassle of standalone humidifiers requiring separate water supplies and maintenance schedules. The system coordinates cooling and humidification seamlessly, preventing the over-drying common with cooling-only systems.

Advanced Features and Control Systems

The wine guardian ds025 incorporates sophisticated monitoring and control technology that separates premium systems from basic cooling boxes.

Digital Control and Monitoring

The standard controller provides real-time data and precise adjustment capabilities:

1. Temperature display: Actual cellar temperature with 0.1°F resolution

2. Humidity readout: Current relative humidity percentage

3. Setpoint adjustment: Independent temperature and humidity targets

4. Alarm functions: High/low temperature alerts, service reminders

5. Fan control: Continuous or automatic circulation modes

For clients managing multiple cellars or requiring remote monitoring, Wine Guardian offers network-enabled controllers that integrate with building management systems. This proves essential in commercial applications like the Cambria Waco Hotel wine cellar project, where staff monitor conditions remotely.

Energy Efficiency and Operating Costs

The wine guardian ds025 balances performance with reasonable operating expenses. Efficiency matters when systems run continuously protecting six-figure collections.

Energy Performance Factors:

• Variable-speed compressor: Adjusts output to match demand, reducing cycling

• High-efficiency heat exchanger: Maximizes thermal transfer with minimal energy

• Smart defrost cycles: Only activates when necessary, reducing downtime

• Optimized airflow: Properly sized fans minimize electrical consumption

Annual operating costs typically range from $180 to $300 depending on local electricity rates, cellar size, and ambient conditions. This represents exceptional value compared to replacing even a single bottle of damaged wine from inadequate climate control.

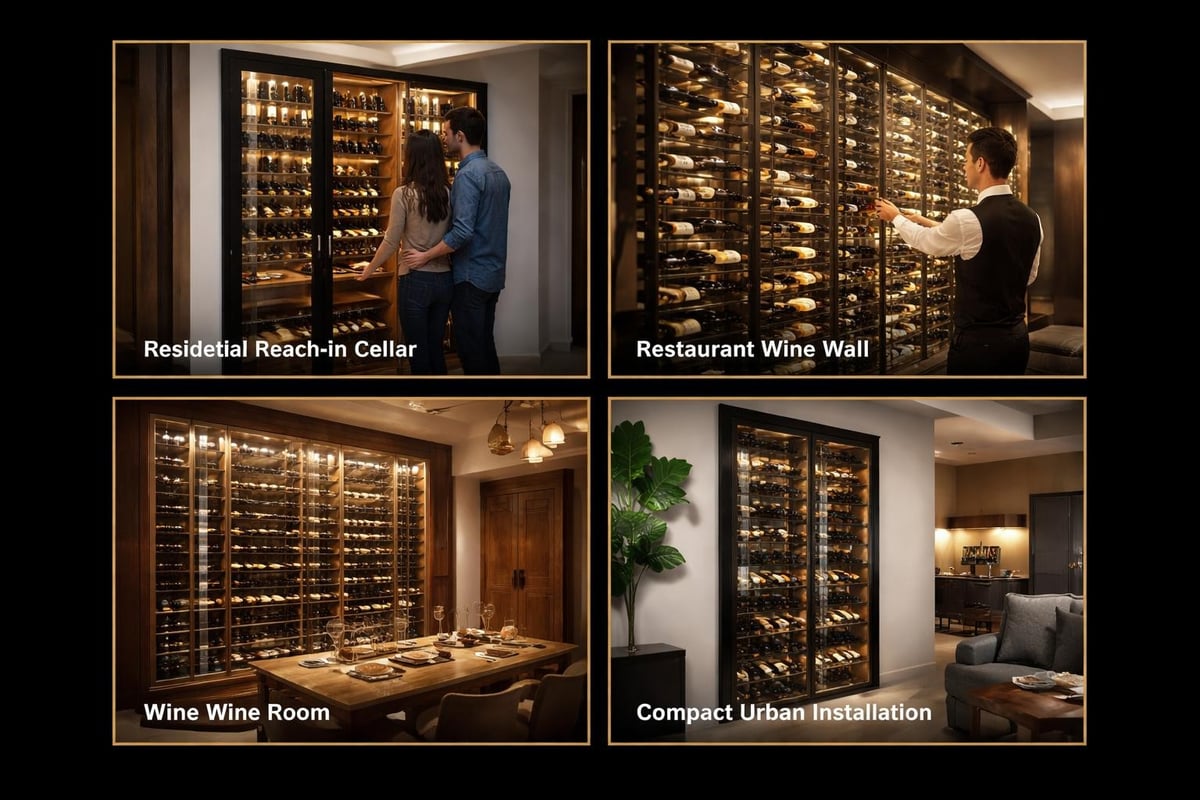

Real-World Applications and Project Examples

Theory matters, but practical performance in diverse conditions demonstrates true capability. The wine guardian ds025 succeeds across various applications because of its adaptable design.

Residential Wine Cellar Installations

Private collectors appreciate the wine guardian ds025 for its combination of precision and discretion. In a Lakeway traditional wine cellar featuring extensive mahogany millwork, we concealed the evaporator in a climate-controlled attic space above. Return air drew from a decorative floor grille that appeared as an architectural element rather than mechanical necessity.

The system maintains 58°F and 62% RH year-round despite Texas summer heat. The homeowner accesses detailed logs showing temperature never varies more than 0.7°F from setpoint, even during extreme weather events.

Commercial and Hospitality Applications

Restaurants and hotels face unique challenges: frequent door openings, display lighting heat, and aesthetic demands. The wine guardian ds025 handles these stresses when properly specified.

Commercial Success Factors:

• Higher capacity reserves to handle door traffic

• Redundant humidity sensors for reliability

• Networked controls for staff monitoring

• Aesthetic integration with interior design themes

One modern wine wall renovation in a Dallas steakhouse showcases 800 bottles behind glass. Diners appreciate the dramatic presentation while the wine guardian ds025 (actually two units working in tandem) maintains stability despite kitchen heat and constant guest traffic.

Compact Urban Applications

Space constraints define urban wine storage. The wine guardian ds025 shines in compact urban wine cellars where every cubic foot matters.

In a Houston high-rise conversion, we designed a 280-cubic-foot cellar within a former closet. The wine guardian ds025 evaporator installed in the adjacent HVAC chase, with condensate drainage tying into existing plumbing. Supply air entered through a custom bronze grille matching the unit's industrial aesthetic. The result: 400-bottle capacity in just 35 square feet of floor space with zero visible mechanical equipment.

Maintenance and Long-Term Performance

Premium equipment deserves premium care. The wine guardian ds025 requires minimal maintenance but benefits enormously from regular attention through our wine cellar maintenance programs.

Annual Service Requirements

Essential Maintenance Tasks:

1. Filter inspection and replacement: Every 3-6 months depending on environment

2. Coil cleaning: Annual evaporator and condenser coil service

3. Condensate line verification: Ensure proper drainage, clear blockages

4. Refrigerant charge check: Verify proper system charge, add if needed

5. Electrical connection inspection: Tighten terminals, check for corrosion

6. Control calibration: Verify temperature and humidity sensor accuracy

7. Humidifier pad replacement: Annual replacement for optimal performance

Neglected systems lose efficiency gradually. A wine guardian ds025 with dirty coils might run 20% longer to achieve the same cooling, increasing energy costs and accelerating wear. Annual professional service typically costs $250-400 but prevents expensive repairs and protects your wine investment.

Troubleshooting Common Issues

Understanding potential issues helps identify problems early:

The installation manual provides detailed diagnostic procedures, but professional service ensures accurate diagnosis and prevents misguided repairs that void warranties.

Comparing Alternatives and System Selection

The wine guardian ds025 represents one solution among many. Understanding alternatives helps validate your choice or identify better options for specific situations.

Through-Wall Units vs. Split Systems

Through-Wall Advantages:

• Lower initial installation cost

• Simpler installation requirements

• Self-contained (no separate condenser)

Through-Wall Limitations:

• Visible equipment disrupts aesthetics

• Must mount on exterior wall

• Higher noise levels in cellar

• Limited placement flexibility

The wine guardian ds025 costs approximately 30-40% more installed but delivers vastly superior aesthetic results. For glass-enclosed wine cellars where the space becomes architectural art, this investment returns value immediately.

Comparing Split System Options

Wine Guardian offers multiple split configurations. The wine guardian ds025 occupies the entry tier, ideal for smaller residential cellars:

Wine Guardian Split System Range:

• DS025: 2,500 BTU, 200-400 cu ft cellars

• DS050: 5,000 BTU, 400-800 cu ft cellars

• DS080: 8,000 BTU, 800-1,200 cu ft cellars

• DS125: 12,500 BTU, 1,200-2,000 cu ft cellars

Each model shares the same split architecture and control sophistication. Proper sizing trumps all other considerations. An oversized DS050 in a space suited for the wine guardian ds025 will short-cycle, creating temperature swings that accelerate wine aging unpredictably.

Ducted vs. Ductless Split Systems

Some manufacturers offer ductless mini-split adaptations for wine cellars. These avoid ductwork but mount visible evaporator units inside the cellar. The wine guardian ds025 ducted design preserves aesthetic integrity while delivering superior air distribution. Ductless units create temperature stratification in cellars with high ceilings or complex layouts.

Installation Investment and Value Proposition

Premium climate control requires appropriate investment. Understanding total project costs helps budget accurately and appreciate long-term value.

Complete System Cost Breakdown

Wine Guardian DS025 Project Costs:

• Equipment (evaporator + condenser): $2,800-3,400

• Installation labor (experienced technician): $1,500-2,500

• Ductwork materials and installation: $800-1,500

• Electrical work (dedicated circuit): $400-800

• Optional humidifier integration: $600-900

• Controls and sensors: Included with base unit

• Total Investment Range: $6,100-9,100

These figures reflect professional installation by experienced wine cellar contractors. DIY installation risks improper refrigerant charging, inadequate airflow, and warranty voidance. When protecting collections valued at $25,000 to $250,000, professional installation represents prudent risk management.

Return on Investment Analysis

Climate control failures destroy wine value rapidly. Summer temperature spikes accelerate aging; winter dryness shrinks corks. A single heat event can damage an entire collection within days.

Value Protection Calculation:

Consider a 400-bottle collection with an average bottle value of $75. Total collection worth: $30,000. The wine guardian ds025 system investment of approximately $7,500 represents just 25% of collection value while providing decades of protection. Even modest collections of 200 bottles averaging $50 each ($10,000 total) justify the investment when compared to replacement costs.

Beyond financial protection, proper climate control maintains wine quality, ensuring bottles develop as winemakers intended. This qualitative benefit defies simple calculation but matters enormously to serious collectors.

Integration with Custom Wine Cellar Design

The wine guardian ds025 doesn't operate in isolation. It integrates within comprehensive wine cellar systems encompassing materials, racking, lighting, and environmental control.

Design Coordination Essentials

Successful projects coordinate multiple disciplines:

1. Architectural planning: Space allocation, ceiling heights, door locations

2. Structural requirements: Floor loading for racking weight, equipment mounting

3. Mechanical design: HVAC integration, condensate drainage, ventilation

4. Electrical systems: Dedicated circuits, lighting controls, sensor wiring

5. Envelope construction: Vapor barriers, insulation values, air sealing

6. Finish selection: Temperature-stable materials, humidity-resistant components

Our turnkey wine cellar design-build approach coordinates these elements seamlessly. The wine guardian ds025 specification occurs early in design, ensuring adequate space allocation and proper integration with architectural features.

Climate Control as Foundation

Beautiful millwork, dramatic lighting, and exotic materials create visual impact. But climate control determines whether your cellar functions properly. We specify the wine guardian ds025 first, then design around it rather than treating cooling as an afterthought.

This sequence ensures:

• Adequate electrical service and circuit capacity

• Proper condensate drainage routing

• Sufficient space for equipment and ductwork

• Air distribution that supports cellar geometry

• Access for future maintenance

Browse our portfolio to see how thoughtful integration creates cellars where mechanical systems disappear while performance excels.

The wine guardian ds025 delivers the precision climate control that luxury wine collections demand, combining proven refrigeration technology with installation flexibility that respects your design vision. Whether you're planning an intimate residential cellar, a dramatic restaurant wine wall, or a boutique hotel showcase, this quarter-ton split system provides reliable protection for collections ranging from emerging enthusiasts to serious connoisseurs. At Prestige Wine Cellars, we've specified and installed the DS025 across dozens of Texas projects, and our comprehensive design-build approach ensures your climate control integrates flawlessly with every architectural and aesthetic element of your custom wine cellar.
